Current position:Home > Product Show> Post-bed Type Sewing Machine
Post-bed Type Sewing Machine

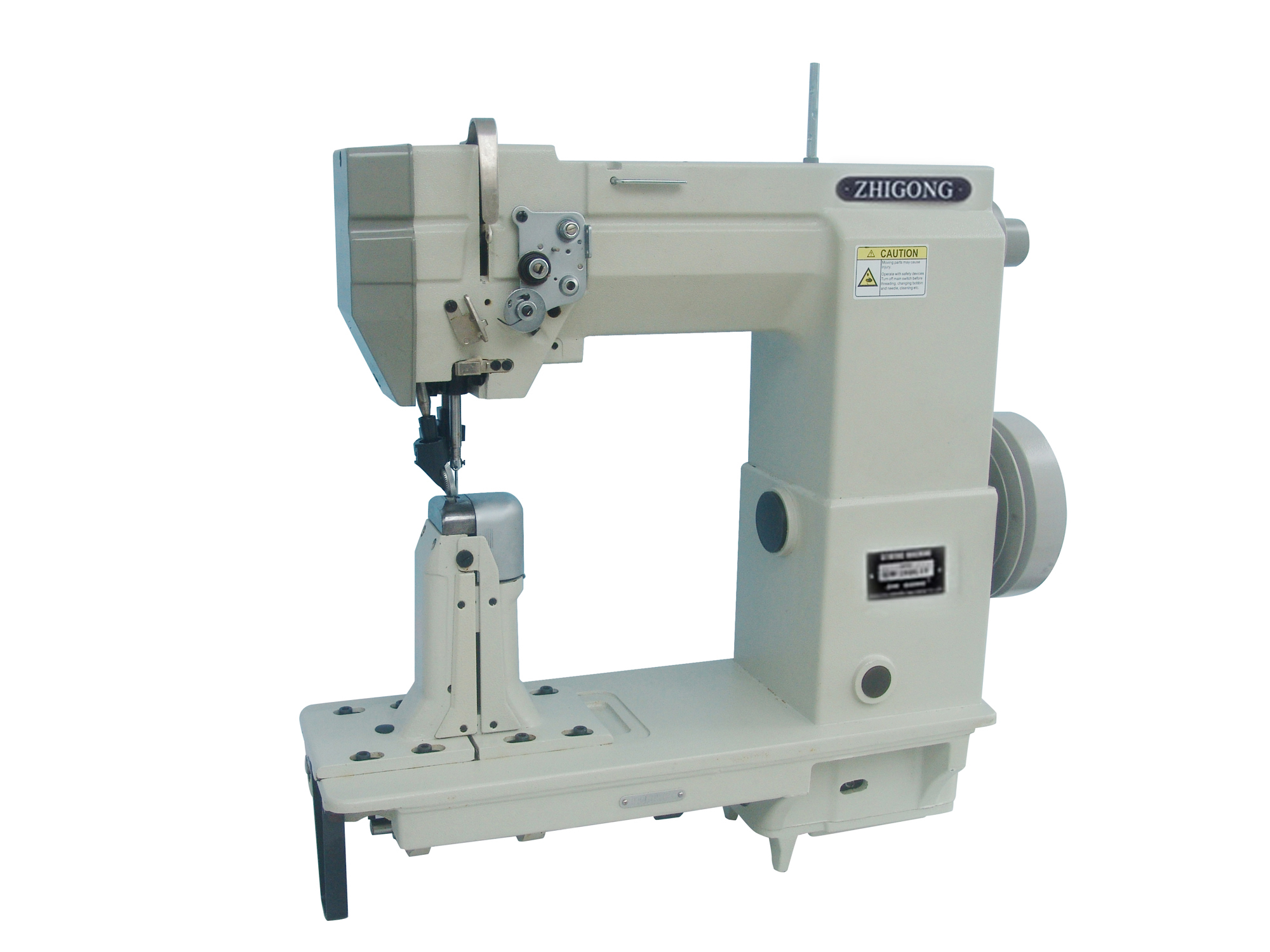

8810/8810H Post-bed compound feed lock stitch sewing machine with roller series

8810/8810H  Post-bed compound feed lock stitch sewing machine with roller series
  • Release time2015/9/8 14:37:39
  • Author
  • Product Click
  • Reference priceNot pricing

Product details

Features:

This model adopts ball wheel and Needle bearing, matching the connecting rod type, to reduce friction and to avoid maintenance; Shuttle switch of Full-rotation and uprightness used; A security for a device to operate, greatly reducing the large flame damage; When spongy material is sewn, it will not transform; instead, it shall be sewn very smoothly and neatly. Not wrinkling when sewing thin materials. With pleasing outline when sewing thick materials. Suitable for sewing shoes and leather goods etc which need high quality sewing.

MODEL

GA-8810

GA-8810H

Max. sewing speed

2500S.P.M

1500S.P.M

Stitch length

0-7MM

Needle bar stroke

38MM

Presser foot lift

(By hand)   7MM                 (By knee) 15MM

Post bed height

178MM

Feed dog

Driven roller type

Needle type

DP*5

Application

------------

Thick thread

Rotation hook

Vertical rotary hook

Lubrication

Manual lubrication

Motor

370W Clutch motor 1400S.P.M




Shared:
Click:101 DateTime:2015/9/8 14:37:39  【打印此页】  【关闭】
On one:GA8365/8366 Super high post bed compound feed lock stitch sewing machine  The next:8820 /8820H Post-bed compound feed lock stitch sewing machine with roller series
