Current position:Home > Product Show> Double needle sewing machine for think material
Double needle sewing machine for think material

GA4420 Heavy duty compound feed lock stitch sewing machine

GA4420 Heavy duty compound feed lock stitch sewing machine
  • Release time2015/9/11 15:58:00
  • Author
  • Product Click
  • Reference priceNot pricing

Product details

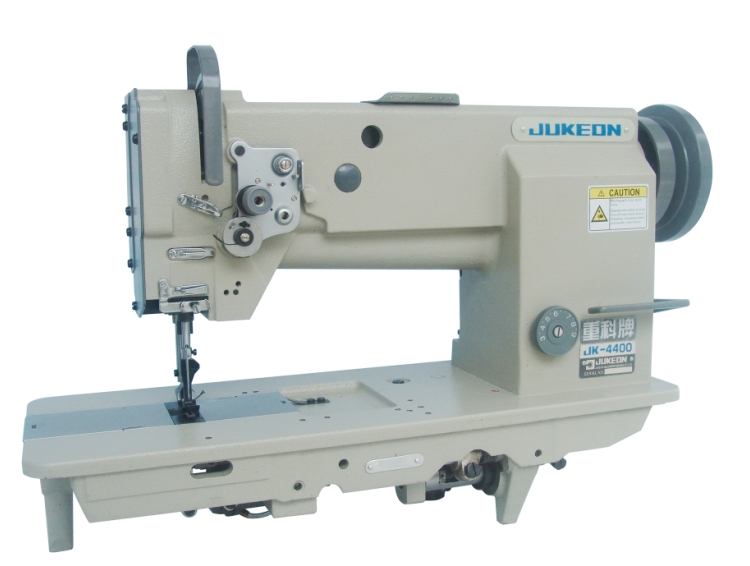

JK-4420( Double-needles)

JK-4450-B1T(Double-needles and thread trimmer with reverse sewing)







Features:

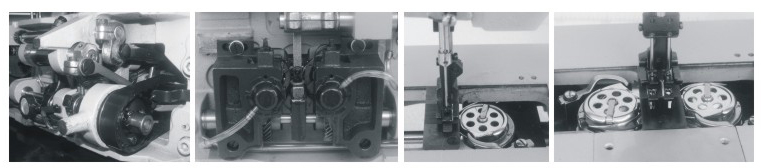

This series is the latest of JUKEON brand heavy duty compound feed locks titch sewing machines, which is designed with large vertical rotating hooks for thread loop catching and sliding bars for thread up-taking. It has been sub-classed into single needle, two needles, single needle with under-trimmer and two needles with under-trimmer. The application of needle bearings for arm shaft and hook shaft, dog belt driving, plunger pump lubrication and compound feed by needle bar, presser foot and feed dog provides this series with such splendid features as smooth running, quiet working and a long service life. It is also equipped with a safety clutch to prevent the hooks from damage by over-duty operation. So it is especially available in stitching car seat cushions, safety belts, safety air bags, tents, parachutes, etc..







Model

JK-4420

JK-4450-B1T



Max. sewing speed

2000S.P.M

Stitch length

0-9MM

Needle bar stroke

36MM

Thread take-up lever stroke

74.5MM

Presser foot lift

(By hand) 8MM               (By knee) 16MM

Needle type

DP*17    18#-23#

Quantity of Needle

2

2

Rotating hook

Auto lubricated large rotary hook

Auto lubricated large rotary hook for thread trimming

Lubrication

Auto lubricated

Safety Clutch Device

YES

Auto Trimmer

NO

YES

Manual reverse feeding device

YES

YES

Auto reverse feeding device

NO

YES

Needle gauge

6.4MM

6.4MM



Motor



370W Clutch motor 1400S.P.M



550W Servo motor
