Current position:Home > Product Show> Carpet over lock and rope net production sewing machine
Carpet over lock and rope net production sewing machine

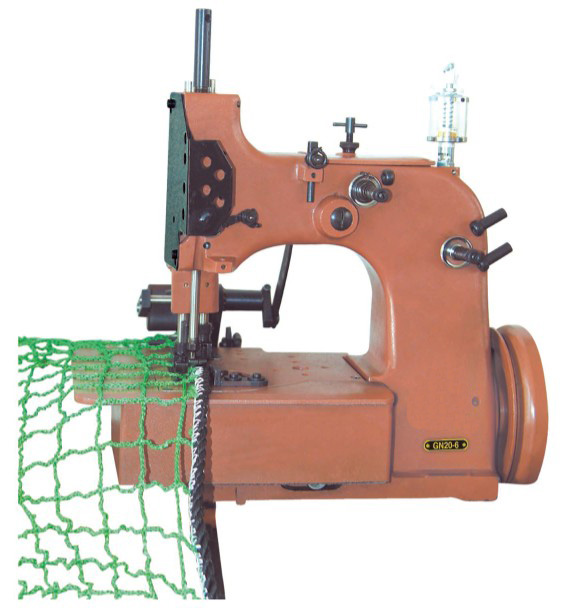

GN20-6 three-Thread Over edging Net Sewing Machine

GN20-6  three-Thread Over edging Net Sewing Machine
  • Release time2015/9/11 15:22:57
  • Author
  • Product Click
  • Reference priceNot pricing

Product details





Product Feature:

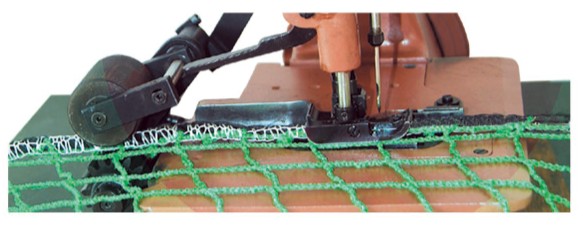

GN20-6 3-thread over edging net sewing machine with synchronous traction function,the GN20-6 3-thread over edging net sewing machine can keep the feed roller and stitching action in synchronization to ensure the distance,consistency of seaming style,and the linking reliability of the rope.we are supplying special guidance about the rope and the net's introduction,so it is easy for the use to connect the rope and the netting,and avoid the skipping stitch.

This series of edging machine Is equipped with alloy connecting rod,which is identical to that of the long life and high speed Sewing Machine.main Parts of This machine is made of annealed alloy steel,thus the service life of the whole machine has been greatly improved.



Technical parameters:



Stitch Type

502

Stitch Range

7-16mm

Thread Type

Polypropylene

Needle

GN20-230/26#

Over edging Width

15mm(10mm Available With Special Order)

Thickness Of Material

14mm

Max.Speed

1400rpm

Motor Power

370W
